Spotlight Product of the Month: EV11.3 WALLBOX – Efficient and Reliable EV Charging
03/02/2025

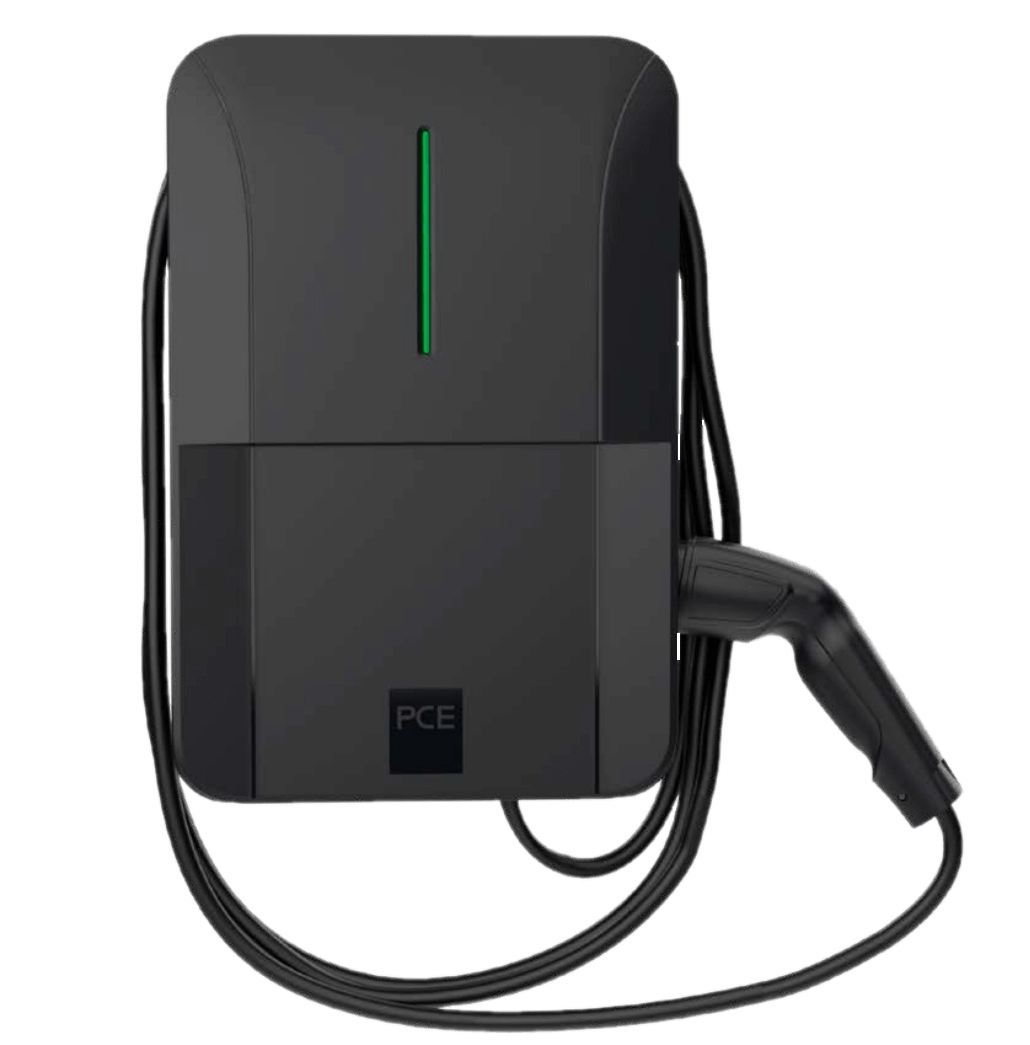

The new EV11.3 WALLBOX is a versatile solution for electric vehicle (EV) charging, designed to meet the needs of both residential and commercial users. Offering a combination of flexible power options and ease of use, it provides a reliable and straightforward charging experience.
Flexible Charging Options
The EV11.3 WALLBOX offers a wide range of charging power, from 4.1 kW to 11 kW in three-phase mode, or from 1.4 kW to 3.7 kW in single-phase mode. It can be controlled via Modbus TCP, enabling integration with higher-level building and load management systems. The system automatically switches between single-phase and three-phase charging depending on the available power, ensuring efficient energy distribution.
User-Friendly and Safe
The charging process is simple and automatic—once the vehicle is plugged in, charging begins without the need for additional authorisation. The LED status display provides clear information on the charging process, keeping users informed. Meeting safety standards including IEC 61439-7 and EN 61851-1, and features DC residual current detection (6mA), ensuring a high level of safety. Installation is straightforward, and no additional RCD Type B is required for professional connection.
Durable and Weather-Resistant
Built to withstand various environmental conditions, housed in an IP44-rated weatherproof casing, making it suitable for both indoor and outdoor installation. The unit’s design ensures it is compact and well-suited to a range of settings, with a modern front panel that maintains a professional appearance.
Efficient Cable Management
The EV11.3 WALLBOX comes with a 5m Type 2 charging cable, which is ergonomically designed with a protective rubber cap. The cable can be conveniently stored over the unit, making it easy to manage without requiring a separate cable suspension system. An integrated plug holder ensures safe storage when not in use.
Energy Monitoring and Management
Integrated temperature monitoring also features to protect the unit from overheating by adjusting the charging power as necessary. It can also be fitted with an MID-compliant energy meter that records the total energy charged, with readings available through a viewing window on the side of the unit. For remote monitoring, the meter can be accessed via Modbus TCP.
External Connectivity Options
The unit offers external connectivity, including a digital enable input, which can be used with systems such as network operators, key switches, or timers. It also supports S0 bus integration for electricity meters, enabling detailed tracking of the charging energy.
Pillar for Outdoor Installation
For installations outside of buildings, an anodised aluminium pillar is available as an optional accessory. The pillar provides a secure and stable mounting solution. It comes in a natural anodised finish, with the option for custom RAL colours to match the installation environment.
The EV11.3 WALLBOX is an efficient and practical charging solution, ideal for both private and commercial use. With its flexible power options, simple operation, and robust design, it ensures reliable and safe charging for all electric vehicles, offers a straightforward and dependable solution to meet your charging needs.
